Micro Headend OM

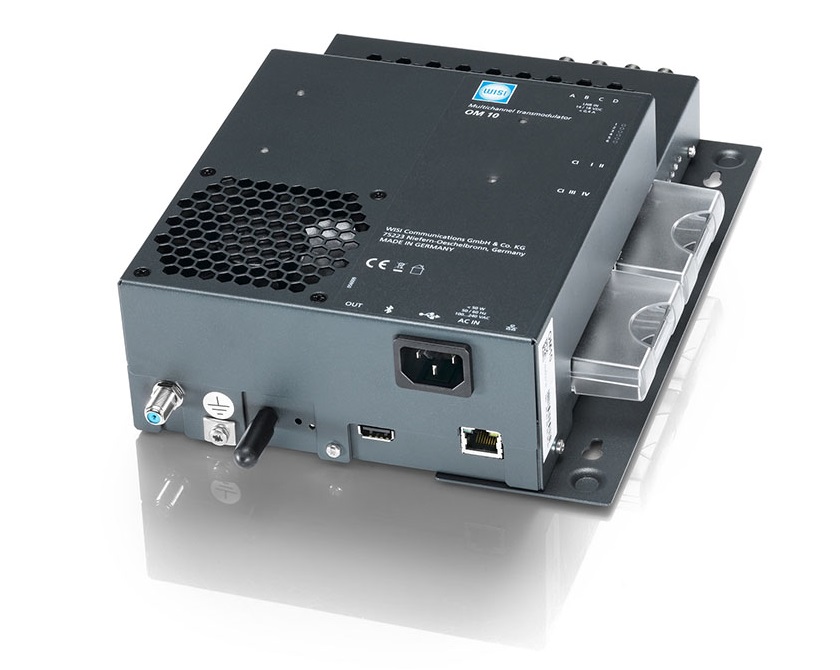

OM10 0648 Transmodulator 6x DVB-S/S2 - 8x QAM/COFDM + 4 CI
OM11 0648 Transmodulator 6x DVB-T/T2/C - 8x QAM/COFDM + 4 CI
OM10 0648 in OM11 0648 je mikro glavna postaja, ki lahko transmodulira 6 DVB-S / S2 (OM10) oz. 6x DVB-T/T2/C (OM11) transponderjev v 8 DVB-C (QAM) ali 8 DVB-T (COFDM) kanalov. Ima 4xCI vmesnik - obstaja tudi možnost ustvarjanja multipleksa pred CI vmesniki, kar uporabniku omogoča združevanje storitev iz različnih transponderjev, ampak jih dešifrira samo z eno pametno kartico, kar zagotavlja učinkovito uporabo profesionalnih CAM modulov. OM 10 in OM11 podpirata brisanje neželenih servisov s transponderja, kar omogoča zmanjšanje izhodnih kanalov z uporabo izhodnega multipleksa. Eksterno video vsebino lahko vnesete preko povezave USB ali LAN.

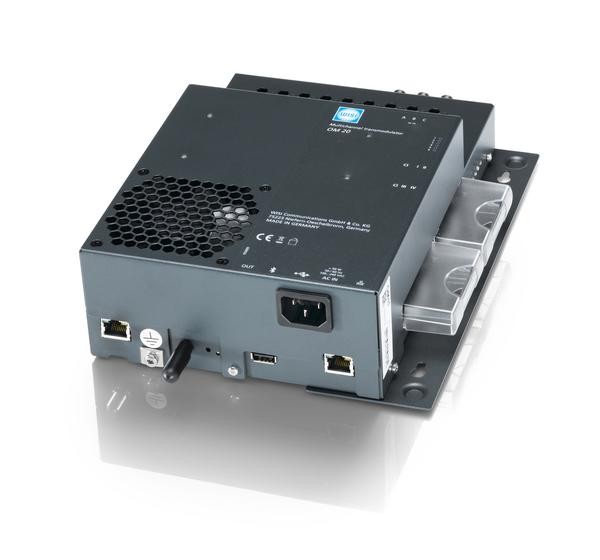

OM 20 064S IPTV channel processing
The OM 20 064S is a micro headend which generates up to 128 SPTS services from 6 DVB-S/S2/S2X transponders. The SPTS services can be fed directly into an IP network and received by IPTV-capable devices. A M3U table allows the easy handling of a service list. The OM 20 064S is perfectly suited for the IPTV provisioning e.g. in hotels or hall of residences and supports by the integrated 4 CI slots the central decryption of pay-tv content. There is also the possibility to create a multiplex before the CI slots allowing the user to combine services from different transponders but to decrypt them by only one smartcard, hereby guaranteeing the efficient usage of professional CAMs. As a transport stream, external video content can be fed in via USB or the LAN connection
