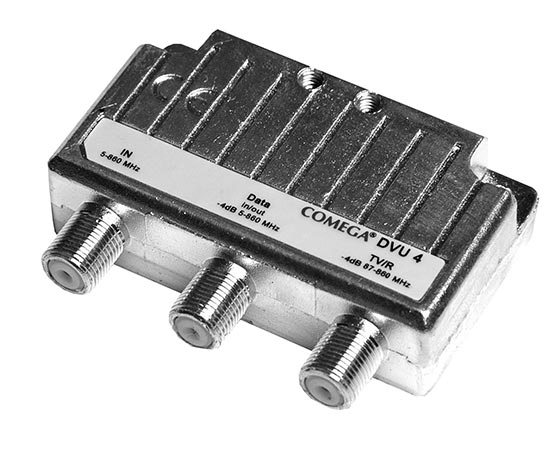

DVU - Data_TV

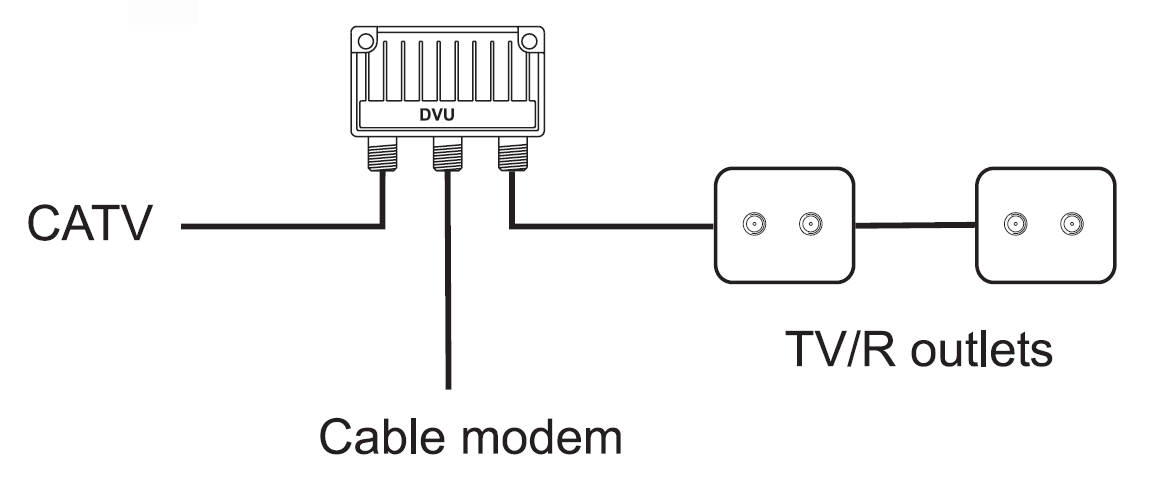

DVU so dizajnirani tako, da minimizirajo motnje iz lokalne instalacije
| Type | DVU 1-4 | DVU 4 | DVU 1-4 1G3 | DVU85 1-4 |
| Version | Diplex | Standard | Diplex | Diplex |
| DATA | ||||
| Frequency forward | 118-1000 MHz | 5-1000 MHz | 258-1300 MHz | 108-1300 MHz |
| Frequency reverse | 5-65 MHz | 5-1000 MHz | 5-204 MHz | 5-85 MHz |
| Insertion loss forward | 4.0 (± 0.8) dB | 3.5 dB | 4.0 (± 1.0) dB | 4.0 (± 1.0) dB |
| Insertion loss reverse | 0.6 (± 0.6) dB | 3.5 dB | 0.8 (± 0.6) dB | 0.8 (± 0.6) dB |
| Isolation DATA-TV/R (5-65 MHz) | > 50 dB | > 65 dB | > 50 dB | > 45 dB |
| Isolation DATA-TV/R (88-1000 MHz) | > 20 dB | > 20 dB | > 20 dB | > 20 dB |
| TV/R | ||||
| Frequency range | 87.5-1000 MHz | 87.5-1000 MHz | 258-1300 MHz | 108-1300 MHz |
| Insertion loss | 4.0 (± 0.8) dB | 3.5 dB | 4.0 (± 1.0) dB | 4.0 (± 0.8) dB |
| General | ||||
| Connectors | F-female | F-female | F-female | F-female |
| Screening ef. (5-30 MHz) | > 90 dB | |||
| Screening ef. (30-300 MHz) | > 85 dB | |||
| Screeninge ef. (300-470 MHz) | > 80 dB | |||
| Screening ef. (470-1000/1300 MHz) | > 75 dB | |||
| Operating temperature | 0-55 oC | |||
| Dimensions (H x W x D) mm | 19 x 66.5 x 50 | |||
| Weight loose(1 pcs.) | 110 g | |||
| Weight innercolli (10 pcs.) | 1.1 kg | |||
| Weight mastercolli (100 pcs.) | 11.1 kg | 23.3 kg (200PCS) | 11.1 kg | |
